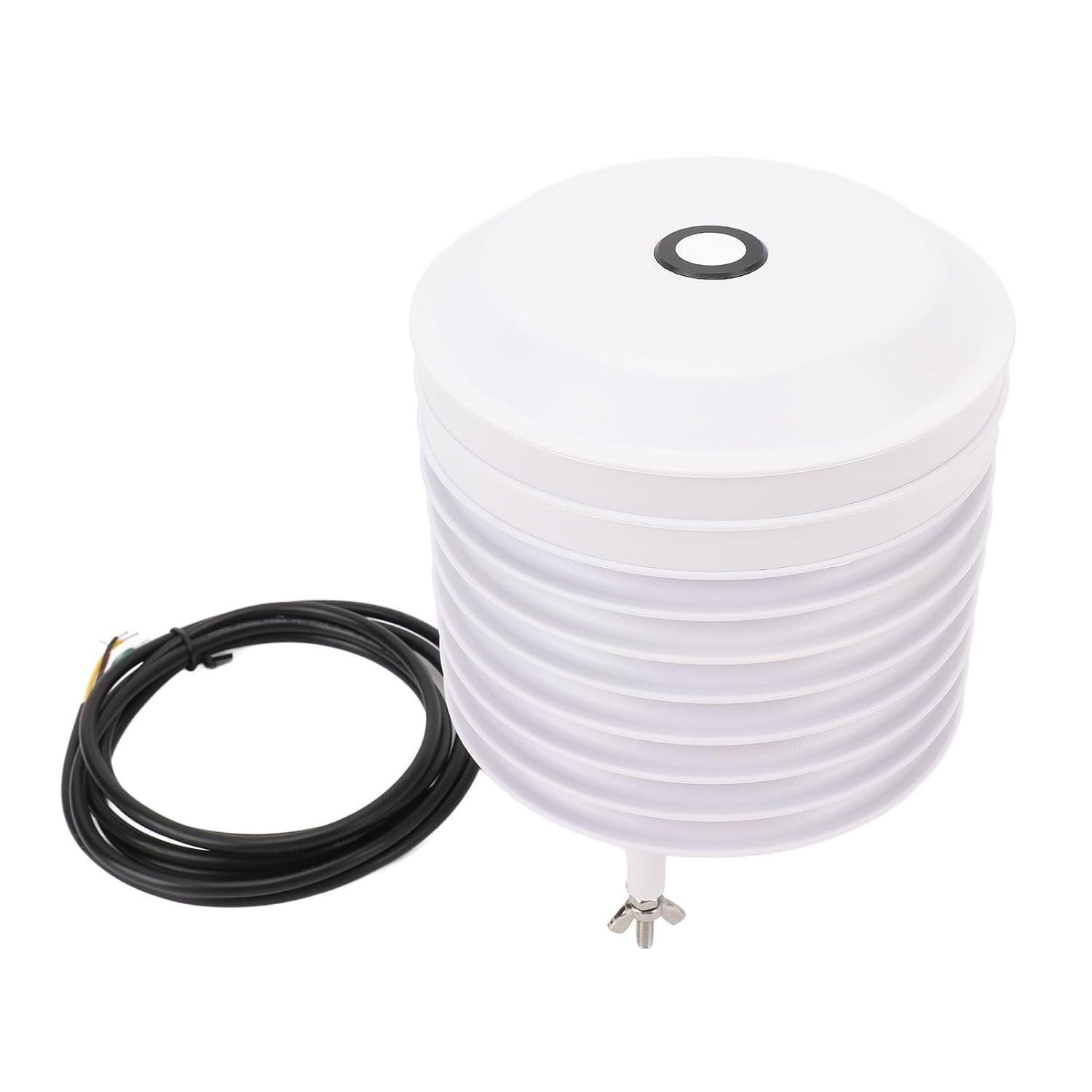

Weather Sensor Louver Box 4 in 1 Light Intensity CO2 Atmosphere Temperature and Humidity Transmitter for Outdoor Environment Monitoring with 9 to 30V Power Supply and (YGC-BYX-M-KV-A1)

Item Type: Weather Station Louver BoxMaterial: ABSWeight: Approx. 1265.00g/44.62ozFeatures: Atmosphere Temperature, Atmosphere Humidity, Light Intensity, CO2Power Supply: 9 to 30VInstallation Size with Bending Plate: Approx. 262x215mm/10.31x8.46inLouver Box Size: Approx. 140x127mm/5.51x5.00inLight Intensity: 0 to 200000Lx (Outdoor), 0 to 65535Lx (Indoor) Measuring Range, ±4% Accuracy, 1Lx Resolution, 0.1mW Power ConsumptionCO2: 0 to 5000ppm Measuring Range, ±(50ppm+5%) Accuracy, 1ppm Resolution, 100mW Power ConsumptionAtmosphere Temperature: -20 to 50℃ (Analog Signal Output) Measuring Range, ±0.3℃ (Standard) Accuracy, 0.1℃ Resolution, 1mW Power ConsumptionAtmosphere Humidity: 0 to 100%RH Measuring Range, ±5%RH (Standard) Accuracy, 0.1%RH Resolution, 1mW Power ConsumptionSensor Total Power Consumption = Multielement Power Consumption + Main Board Basic Power ConsumptionOperating Environment: -40℃~+75℃Main Board Basic Power Consumption: 200mWProtective Level: IP54Wiring: Wire Color: Wire Sequence (Current Analog Signal) Red Wire: VCC Positive Power SupplyGreen Wire: GND Negative Power SupplyBlack Wire: Signal Line 1Yellow Wire: Signal Line 2White Wire: Signal Line 3Brown Wire: Signal Line 4For Modbus CRC Check Steps: 1. Preset 16 Bit Register As Hexadecimal FFFF, Called CRC Register2. XOR The First 8 Bit Data With The Low Bit Of The CRC Register, Put The Result On The CRC Register3. Shift The Contents Of The Register One Bit To The Right (Toward The Low Bit) And Fill In The Highest Bit With 0, Checking The Lowest Bit4. If The Lowest Bit Is 0: Repeat Step 3 (Shift Again); If The Lowest Bit Is 1: Xor The CRC Register With The Polynomial A001 (1010 0000 0000 0001)5. Repeat Steps 3 And 4 Eight Times, So That The Entire 8 Bit Data is Processed6. Repeat Steps 2 To 5 For The Next 8 Bit Data Processing7. The Final CRC

• All In One Monitoring: This weather sensor louver box integrates atmospheric temperature, humidity, light intensity, and CO2 measurement in a single unit, making it an ideal solution for comprehensive outdoor environmental monitoring it operates on a 9 to 30V power supply, ensuring reliable performance in various outdoor settings.
• Sturdy & Weatherproof: The louver box features a plastic panel integrated with and anti aging materials, along with a unique structural design that provides high reflectivity and low thermal conductivity, allowing it to withstand extreme climatic conditions and maintain long term durability.
• Easy Installation & Wiring: Designed as a single unit with only one signal line, this sensor simplifies the installation process, requiring minimal wiring effort its sleek and attractive appearance also adds an aesthetic touch to any outdoor monitoring setup.
• Precise & Stable Measurement: Equipped with stable and accurate measuring capabilities, this weather sensor louver box ensures reliable data collection installation is进一步 simplified with just a few screws needed, making it easy to set up and start using quickly.
• Versatile Application Range: Suitable for monitoring environmental elements in diverse areas such as farming, meteorology, forestry, power generation, , ports, railways, and highways, this sensor meets the needs of various industries and outdoor monitoring scenarios.
