Emuca - Kit of 20 Inset Overlay Hinges x91. Ø35mm. 105° Opening, Soft Closing for Latching Doors and eccentrically Adjustable Screw-on Inserts.

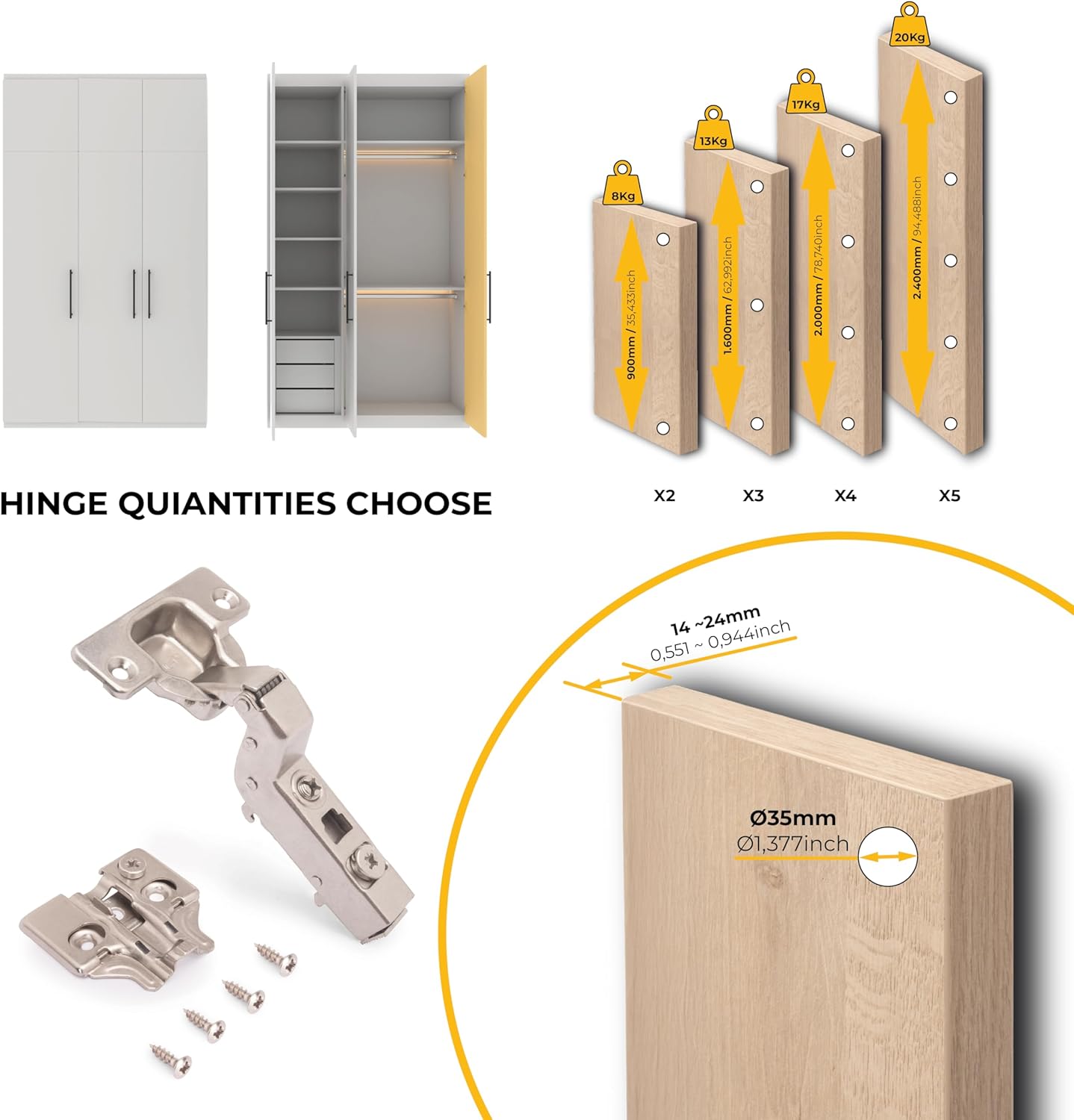

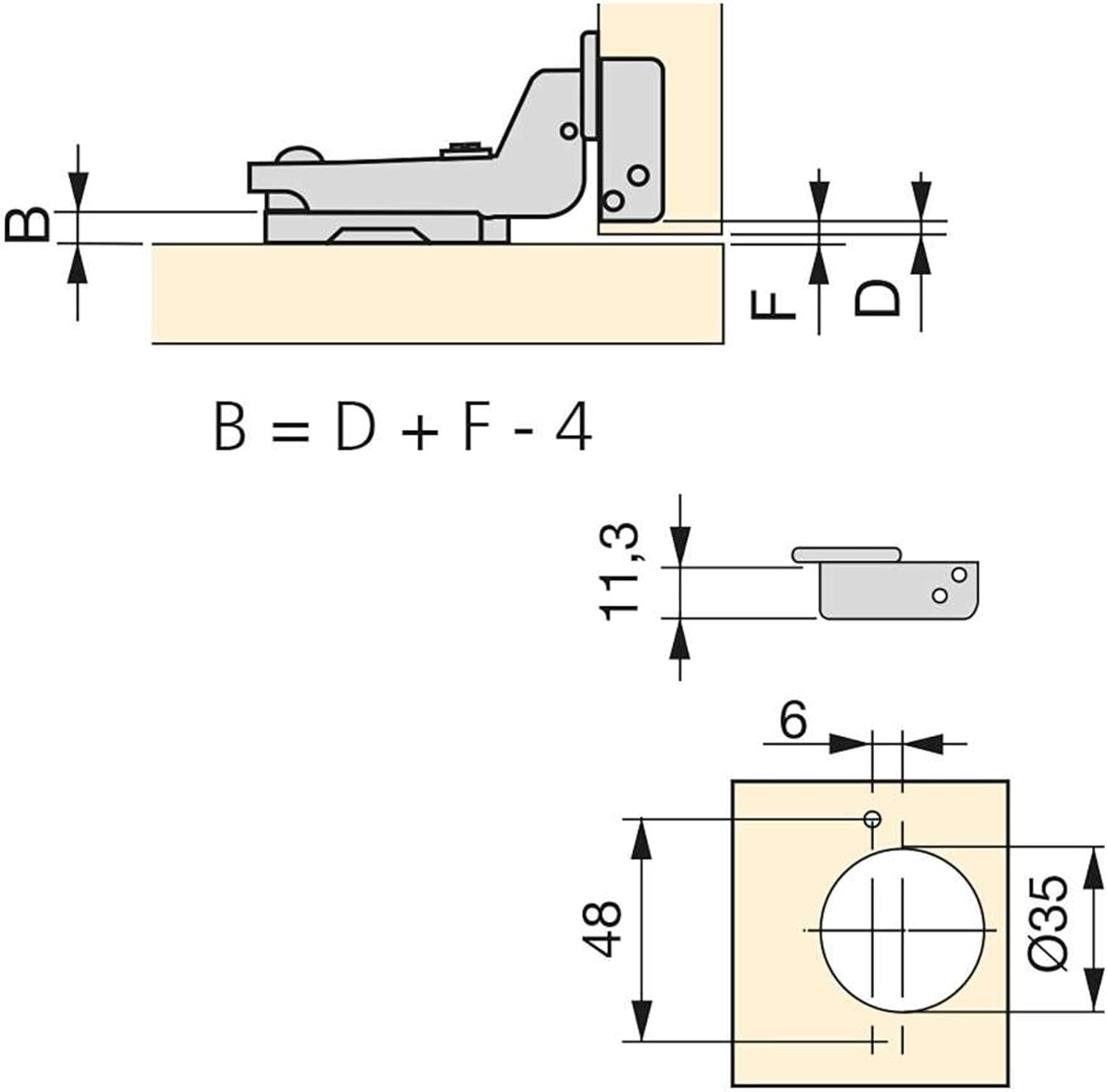

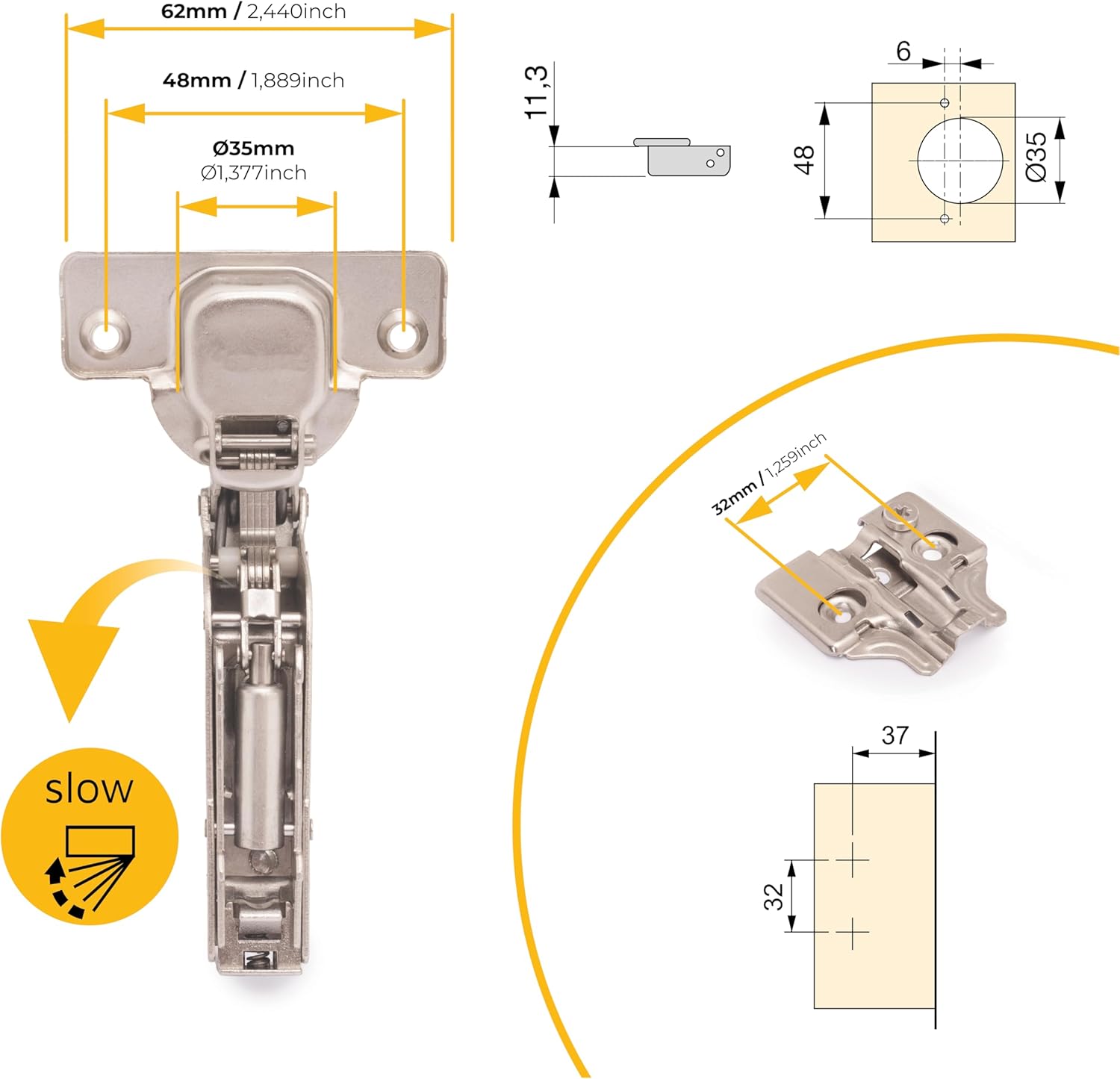

Set of concealed hinge for furniture door and fixing plate delivered in batches of 20 pieces together with the required fixing screws. They are made of nickel plated steel. They can be mounted in wooden doors with thickness between 14 and 24mm of the cabinets at home (kitchen, bedroom, bathroom, office), and they can be easily adjusted in three-dimension by means of the cam at the hinge arm and at the plate itself. Useful soft close system to prevent from noise or slam when closing the doors. Hinge details: • Ø35mm cup (Ø35x11,3mm drilling required). • Hole distance: 48mm. • Door mounting option: Inset application. • Soft close system. • Opening angle: 100°. Plate details: • Hole distance: 32mm. • Mounting type: screw-on. • Cam adjustment. Package content: • 20 hinges, 20 plates and assembly screws.

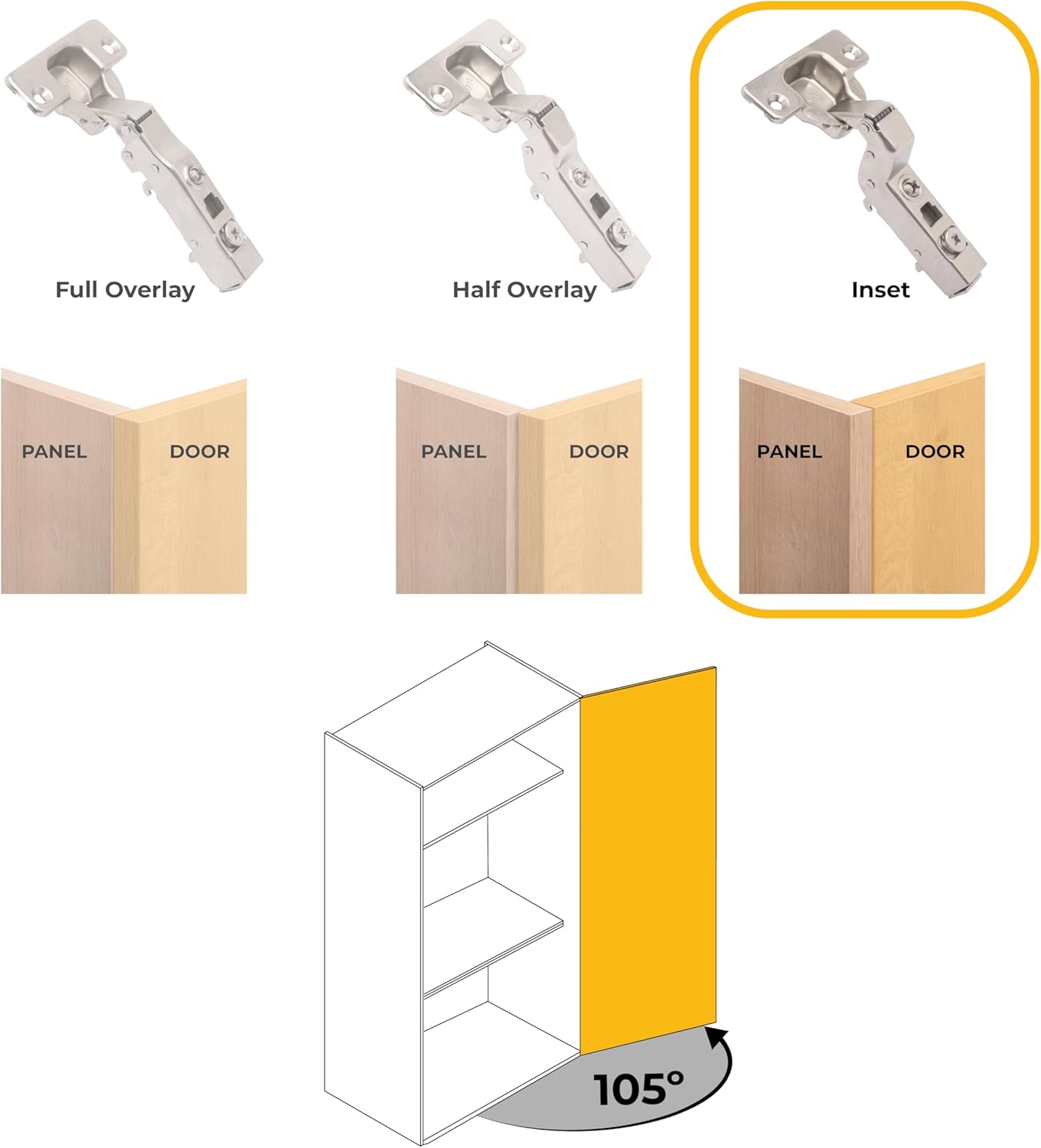

• Super-cornered hinge with soft closing, Ø35mm cup and 105° opening angle, suitable for doors from 14 to 24 mm thick.

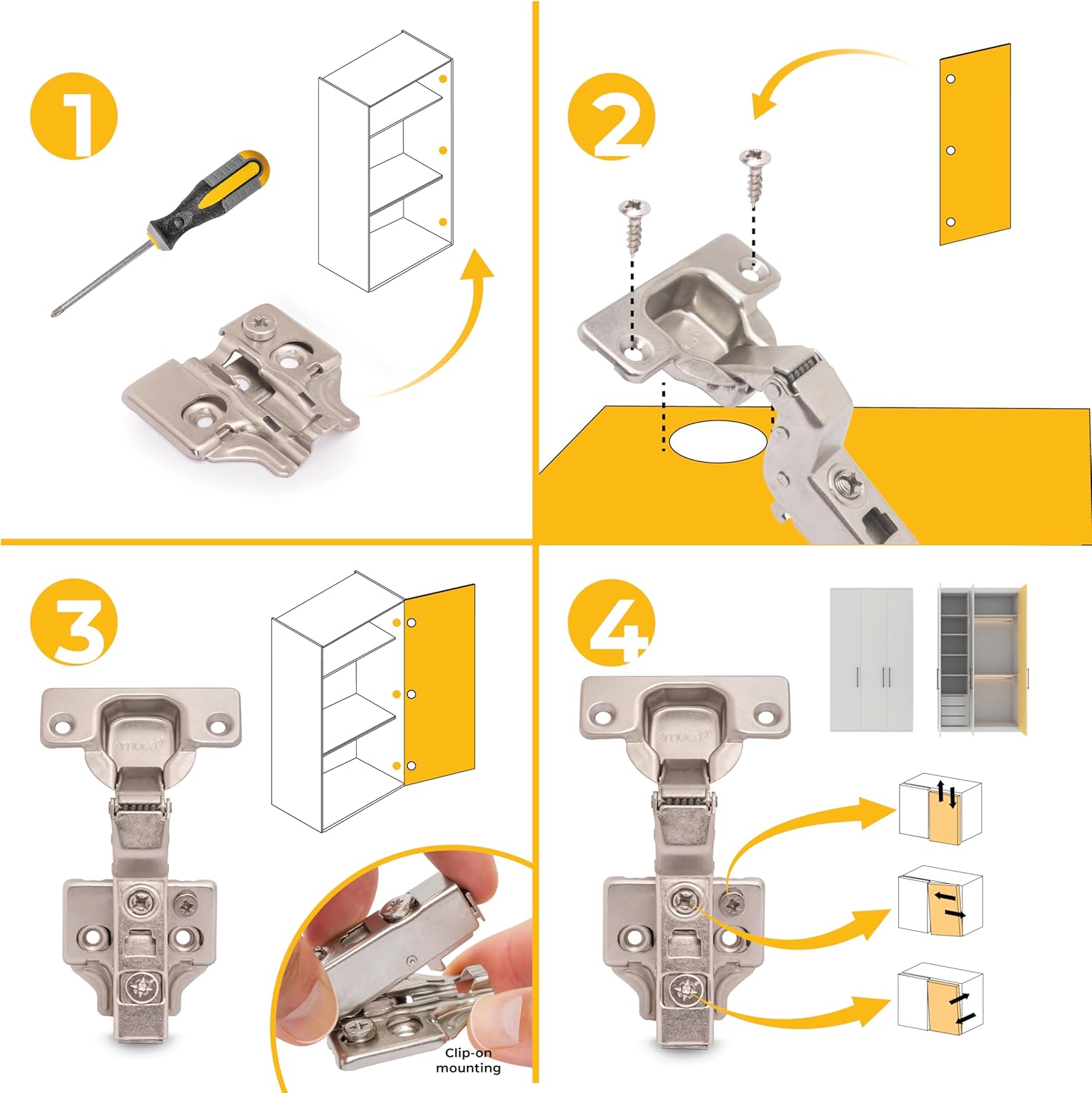

• The hinge is clipped onto the supplement: easy and quick assembly and disassembly of the door.
• Screw-on supplement with eccentric adjustment.
• Three-dimensional adjustment by means of eccentric for door alignment.
• Each lot includes 20 hinges, 20 shims and mounting screws.
