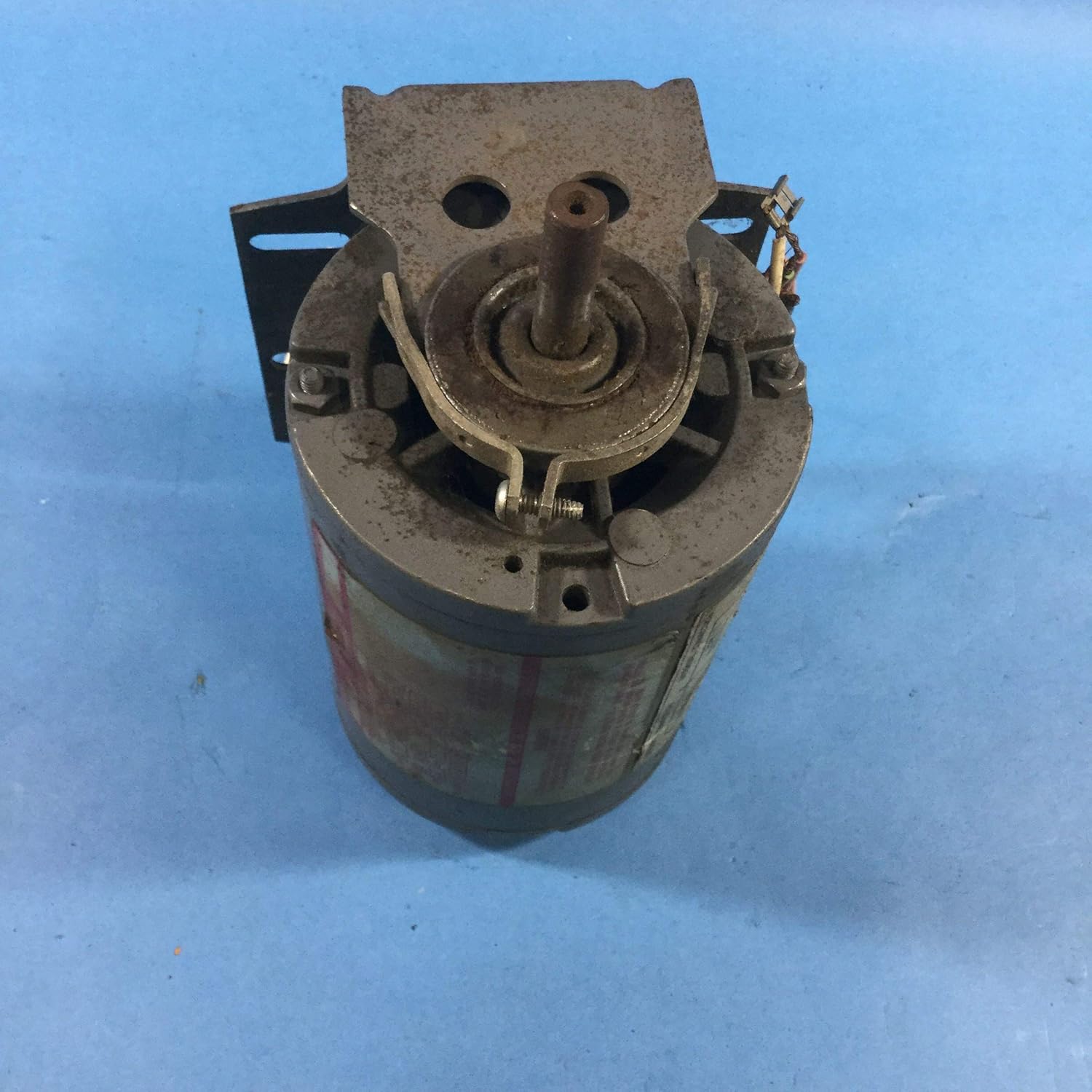

Dayton 6K402 Motor,1/12 HP,General - 6K402

Split-Phase Open Dripproof Base- and Cradle-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Insulation: Class BOpen dripproof motors are for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. NEMA 42 frame is supplied with a relay instead of a centrifugal switch; relay mounting clip is included.UL Recognized and CSA Certified. Item: General Purpose Motor Motor Application: General Application Motor Design: Split-Phase Motor Enclosure Design: Open Dripproof HP: 1/12 Nameplate RPM: 1725 Frame: 42 Voltage: 115 Hz: 60 Phase: 1 Full Load Amps: 3.7 No. of Speeds: 1 Motor Mounting Type: Cradle Base Motor Thermal Protection: None Ins. Class: F Motor Service Factor: 1.40 Motor Bearings: Ball Motor Frame Material: Rolled Steel Max. Ambient Temp.: 40 Degrees C Motor Shaft Rotation: CW/CCW Shaft Dia.: 3/8" Shaft Length: 1-1/8" Length Less Shaft: 5-10/16" Overall Length: 6-7/8" Motor Shaft Design: Flat RPM Range: 1701-1800 Standards: UL (E47479), CSA (156060) Duty: Continuous Motor Efficiency Group: Standard Efficient Nominal Efficiency: 32.8% Manufacturers Warranty Length: 1 yr. RPM Group: 1701-1800

• Made in Mexico
